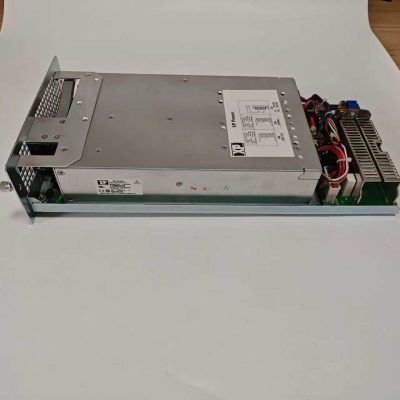

ABB PHARPS32000000 module
ABB PHARPS32000000 module

ABB PHARPS32000000 Power Module Installation and Commissioning Guide

Introduction

The ABB PHARPS32000000 power module provides reliable 24 V DC output and high current capacity, making it essential for industrial automation systems. Proper installation and commissioning ensure optimal performance, prevent downtime, and maximize module longevity. This guide explains step-by-step procedures for safely installing, wiring, configuring, and testing the PHARPS32000000 module. Engineers and technicians will benefit from practical insights, detailed procedures, and industry best practices to streamline setup and maintain system reliability.

Modern industrial systems demand precise power delivery and continuous operation. ABB addresses these requirements through the PHARPS32000000, which combines advanced circuitry, robust protection, and compact design to simplify deployment.

Module Overview

Key Features

The PHARPS32000000 module includes the following critical features:

  • Stable 24 V DC output for PLCs and auxiliary devices

  • Wide input voltage range (100–240 V AC, 50/60 Hz)

  • High energy efficiency exceeding 90%

  • Overvoltage, overcurrent, and thermal protection

  • Compact, modular design suitable for rack installation

  • LED indicators for status and fault diagnosis

Understanding these features before installation ensures the module functions safely and efficiently. Each element contributes to performance, reliability, and ease of maintenance.

Pre-Installation Preparation

Safety Precautions

Before beginning installation, follow safety protocols:

  • Disconnect AC power to avoid electrical shock

  • Use insulated tools and wear personal protective equipment

  • Verify system grounding and bonding

  • Confirm ambient temperature falls within the recommended operational range (0–60°C)

  • Avoid moisture, dust, and direct sunlight near the installation area

Site Requirements

  • Ensure proper rack or cabinet space for the module

  • Provide adequate ventilation and airflow

  • Maintain clearance around the module for easy maintenance and heat dissipation

  • Ensure AC and DC supply cables meet ABB specifications

Preparing the site properly minimizes installation errors and improves long-term reliability.

Installation Procedure

Mechanical Installation

  1. Mount the module securely on a standard 19-inch rack or designated cabinet slot.

  2. Align the module’s mounting holes and fasten screws without over-tightening to prevent housing damage.

  3. Verify the module sits firmly and does not vibrate, ensuring stable mechanical support.

Electrical Connections

AC Input

  1. Connect the AC input (100–240 V AC, 50/60 Hz) to the designated terminals.

  2. Ensure proper polarity and secure connections.

  3. Check that input cables comply with ABB recommendations for wire gauge and insulation.

DC Output

  1. Connect DC output lines to PLC modules, I/O devices, or auxiliary equipment.

  2. Maintain correct polarity to avoid damage to downstream components.

  3. Use tight, reliable connections to reduce voltage drop and prevent overheating.

Grounding

Proper grounding protects the module and system from electrical interference. Connect the module to the main system ground using a low-resistance path.

Commissioning Steps

Initial Power-On

  1. Verify all connections are secure.

  2. Switch on AC power gradually and observe LED indicators.

  3. Confirm the module powers on correctly:

    • Green LED indicates normal operation

    • Amber or red LED signals a fault condition

Load Testing

  1. Connect a test load equivalent to operational devices.

  2. Measure output voltage and current to ensure stability.

  3. Monitor the module under varying load conditions to check voltage regulation.

Diagnostics

  1. Observe LED status indicators during initial commissioning.

  2. Use ABB-compatible PLC or monitoring software to track module health and performance.

  3. Document initial operating parameters for future reference and preventive maintenance.

Troubleshooting

Common Issues

  • No Power: Check AC input connections, fuses, and main power switch.

  • LED Fault Indications: Investigate overcurrent, overvoltage, or thermal warning.

  • Voltage Instability: Verify load connections, cable size, and environmental conditions.

Corrective Actions

  • Replace damaged cables or fuses.

  • Ensure module ventilation and reduce ambient temperature if overheating occurs.

  • Recheck wiring according to ABB specifications to eliminate errors.

Regular monitoring and preventive maintenance help avoid system failures and extend module lifespan.

Maintenance Tips

Preventive Maintenance

  • Inspect terminals, cables, and connectors every 6–12 months.

  • Clean dust from ventilation openings using compressed air.

  • Record module operating temperatures and compare with specifications.

  • Review LED indicators and system logs for early warning signs.

Module Replacement

The PHARPS32000000 module supports hot-swapping. To replace:

  1. Power down affected circuits if required.

  2. Remove the module from the rack.

  3. Install the new module following the same mechanical and electrical procedures.

  4. Perform a full commissioning cycle to ensure proper operation.

Industrial Applications

PLC Systems

The PHARPS32000000 ensures stable power delivery for ABB PLC modules, supporting consistent logic processing, accurate signal handling, and uninterrupted automation processes.

DCS and Automation Systems

Distributed Control Systems (DCS) rely on uninterrupted voltage supply for I/O devices, sensors, and controllers. This module maintains output stability even under variable load conditions, improving system reliability.

Auxiliary Equipment

Auxiliary devices such as relays, actuators, and HMI panels benefit from high-quality 24 V DC output. Multiple devices can operate simultaneously without voltage fluctuations or performance degradation.

Best Practices

  1. Follow ABB installation and commissioning manuals precisely.

  2. Monitor LED indicators during the first 24 hours of operation.

  3. Record electrical parameters for system documentation.

  4. Ensure module ventilation and ambient conditions remain within specifications.

  5. Schedule regular preventive maintenance for long-term reliability.

Conclusion

The ABB PHARPS32000000 power module combines high efficiency, robust protection, precise output, and modular design to provide reliable power for industrial automation systems. Following proper installation and commissioning guidelines ensures safe, stable, and efficient operation. Engineers benefit from simplified setup, reduced downtime, and enhanced system performance. With careful maintenance, the PHARPS32000000 continues to deliver optimal industrial performance over its lifespan.
