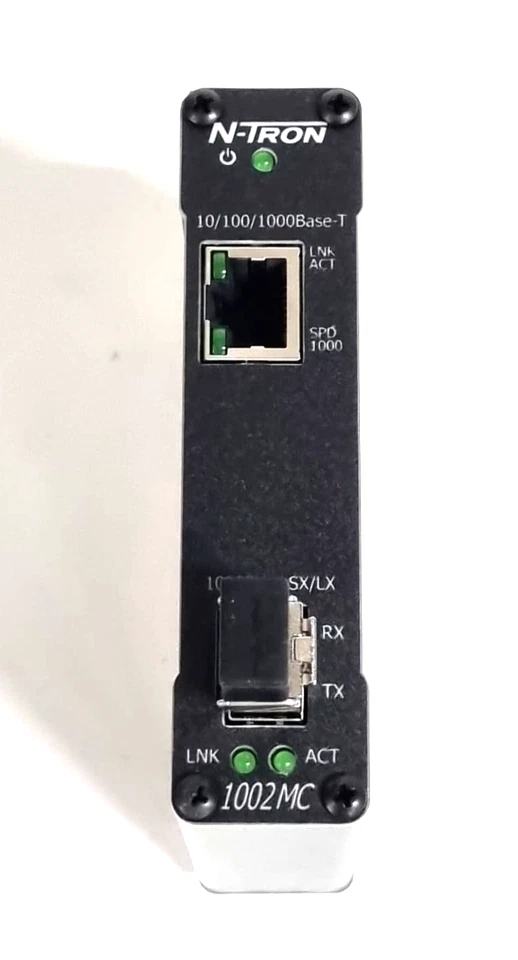

N-TRON Industrial Ethernet Switch 1002MCLX10 – Specifications and Technical Overview

The N-TRON 1002MCLX10 is a high-performance industrial unmanaged Ethernet switch designed for harsh and demanding industrial environments. Manufactured by N-Tron (a brand under Red Lion Controls), this rugged switch ensures reliable data transmission, minimal downtime, and long-term performance in automation, transportation, and process control systems. Its durable metal housing, extended operating temperature range, and advanced fiber capabilities make it an ideal solution for mission-critical network infrastructures.

For more details or to purchase the original N-TRON 1002MCLX10, please visit https://www.ayingo.com.

Key Features

Industrial-Grade Design
The 1002MCLX10 is built with a compact, all-metal enclosure for maximum durability. It is specifically engineered to operate in harsh environments exposed to vibration, electrical noise, humidity, and extreme temperatures.
10-Port Ethernet Configuration
- 8 RJ45 copper ports supporting 10/100Base-TX
- 2 fiber optic ports (SC or ST connectors) supporting 100Base-FX or LX
  This combination allows both short-range copper and long-range fiber connectivity, making it suitable for diverse network topologies.
Plug-and-Play Operation
The switch is unmanaged, meaning it requires no configuration. It automatically detects network speed, duplex mode, and cable type, allowing for seamless integration into existing networks.
Wide Operating Temperature Range
Designed for -40°C to +85°C, the N-TRON 1002MCLX10 can function reliably in both cold and hot environments — from outdoor control cabinets to factory floors.
DIN-Rail Mountable
Its slim form factor and standard DIN-rail mounting simplify installation and maintenance in industrial panels and control enclosures.
Extended Power Input
The unit supports redundant 10–49 VDC power inputs to ensure uninterrupted operation even in case of power supply failure.

Technical Specifications

Parameter	Specification
Model	N-TRON 1002MCLX10
Device Type	Industrial Unmanaged Ethernet Switch
Ports	8 × 10/100Base-TX RJ45 ports, 2 × 100Base-FX (Multi-mode or Single-mode)
Fiber Connector Type	SC or ST
Switching Capacity	2.6 Gbps
Forwarding Rate	1.488 Mpps (wire-speed forwarding)
Latency	<5 µs
MAC Table Size	8,000 entries
Backplane	Non-blocking
Power Requirements	10–49 VDC redundant inputs
Power Consumption	<4 W typical
MTBF (Mean Time Between Failures)	>2 Million Hours
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Humidity	0–95% non-condensing
Enclosure	Rugged metal, DIN-rail mountable
Protection	IP30 rated
Dimensions (H × W × D)	4.3 × 2.3 × 3.1 in (109 × 58 × 79 mm)
Weight	Approx. 0.5 kg
EMI/EMS Compliance	FCC Part 15 Class A, EN55022 Class A, IEC61000-4-2/3/4/5/6
Safety Standards	UL 508, CE, RoHS compliant

Performance and Reliability

The N-TRON 1002MCLX10 provides high reliability and long operational life with no moving parts or fans. Its MTBF exceeding 2 million hours makes it an excellent choice for systems where continuous operation is critical, such as manufacturing automation lines, SCADA systems, oil and gas networks, and transportation systems.

The dual power input feature enhances system reliability by providing automatic failover in case one power source fails. Additionally, the device supports broadcast storm control to prevent network congestion.

Applications

The N-TRON 1002MCLX10 is widely used across multiple industrial sectors, including:

Factory and Process Automation – Seamless data exchange between PLCs, HMIs, and sensors.
Energy and Utilities – Reliable communication between substations and control rooms.
Transportation Systems – Network backbone for signaling, surveillance, and control systems.
Oil, Gas, and Mining – Rugged connectivity in explosive and dusty environments.
Water and Wastewater Management – Robust data communication under humid and corrosive conditions.

Its ability to combine fiber and copper connectivity ensures flexibility for both local and remote equipment connections.

Fiber Optic Options

Depending on the model, the 1002MCLX10 supports multi-mode or single-mode fiber options, providing communication distances of:

Multi-mode (MM): up to 2 km
Single-mode (SM): up to 15–40 km

This flexibility enables long-distance, interference-free communication, crucial in electrically noisy environments.

Installation and Maintenance

Installation is straightforward thanks to its DIN-rail mounting and plug-and-play capability. No additional configuration is required—simply connect the Ethernet cables and power supply. LED indicators provide instant status of power and link activity for each port, simplifying troubleshooting and diagnostics.

Maintenance requirements are minimal due to the absence of fans and moving parts, further reducing total cost of ownership (TCO).

Why Choose N-TRON 1002MCLX10

Unmatched durability for industrial-grade environments
Flexible network design with both copper and fiber ports
Redundant power inputs for high system availability
Extended temperature operation for outdoor and remote sites
Proven reliability with a long MTBF and zero maintenance

These features make the N-TRON 1002MCLX10 an ideal solution for engineers and system integrators seeking reliable Ethernet connectivity for critical industrial applications.

Where to Buy

To purchase or learn more about the N-TRON 1002MCLX10 Industrial Switch, visit:
👉 https://www.ayingo.com

This platform provides authentic, brand-new N-TRON products, fast delivery, and professional support to meet your industrial networking requirements.

Conclusion
The N-TRON 1002MCLX10 represents a robust and reliable industrial Ethernet switch built for performance and endurance. With a rugged design, redundant power support, and fiber connectivity, it ensures uninterrupted network operation in even the harshest conditions — making it the backbone of modern industrial automation networks.
