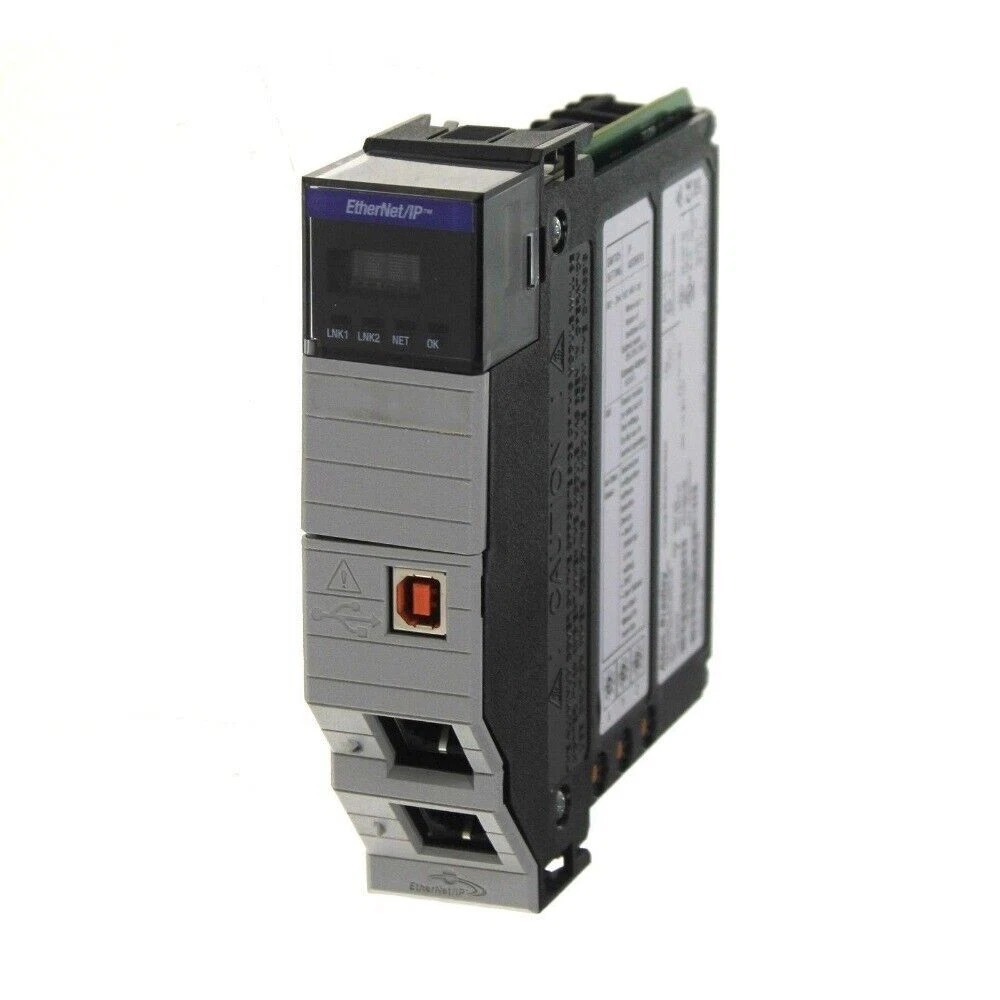

Allen-Bradley 1756-EN2TR — High-Speed Ethernet Communication Module for Industrial Automation

In the modern era of industrial automation, seamless and reliable communication between controllers, devices, and networks is critical for operational efficiency. The Allen-Bradley 1756-EN2TR Ethernet communication module addresses these needs by delivering high-speed, deterministic, and scalable networking capabilities for ControlLogix systems. This module is designed to integrate smoothly into industrial automation architectures, enhancing real-time data exchange, monitoring, and control while supporting complex industrial processes.

Engineers and automation professionals can refer to www.ayingo.com for detailed product specifications, network configuration guidelines, and integration solutions.

1. Overview of 1756-EN2TR

The 1756-EN2TR is part of the Allen-Bradley ControlLogix family, which emphasizes modularity, performance, and reliability. This Ethernet module provides high-speed connectivity for ControlLogix controllers, enabling them to communicate efficiently with other devices, HMIs, and enterprise systems.

Unlike traditional serial or proprietary communication modules, the 1756-EN2TR supports modern Ethernet standards and protocols, making it suitable for both small and large-scale industrial networks. Engineers benefit from its robust data throughput, low-latency communication, and advanced diagnostics, ensuring continuous operational reliability.

2. Key Technical Specifications

The Allen-Bradley 1756-EN2TR is engineered for high performance and flexible integration. Key specifications include:

Module Type: ControlLogix Ethernet communication module
Ethernet Ports: Dual RJ45 ports for redundant or standard network configurations
Data Rate: 10/100 Mbps full/half duplex
Protocol Support: EtherNet/IP, TCP/IP, UDP/IP
Network Topology: Star, linear, or redundant ring configurations
Indicators: Status LEDs for link, activity, and module health
Power Requirements: Supplied via backplane from ControlLogix chassis
Operating Temperature: 0–60°C
Compliance: IEC, UL, and CE industrial standards

These specifications ensure that the 1756-EN2TR delivers fast and reliable Ethernet communication, essential for real-time industrial control and monitoring applications.

3. High-Speed Ethernet Performance

At the heart of the 1756-EN2TR is a high-performance processor optimized for low-latency and deterministic communication. This enables ControlLogix controllers to exchange large volumes of data across the network rapidly, making it ideal for process control, discrete manufacturing, and motion control applications.

By supporting EtherNet/IP protocols, the module facilitates seamless device-to-device communication, enabling distributed control systems, real-time diagnostics, and improved system efficiency. Engineers can implement high-speed data sharing between PLCs, I/O modules, drives, and HMIs without compromising network reliability.

4. Flexible Networking and Redundancy

The 1756-EN2TR offers dual Ethernet ports, allowing network redundancy for critical applications. Redundant configurations ensure continuous communication even if one network path fails, minimizing downtime and maintaining operational continuity.

Additionally, the module supports various network topologies, including star, linear, and ring configurations. This flexibility allows engineers to design scalable networks that meet unique industrial requirements while simplifying system expansion and maintenance.

5. Advanced Diagnostics and Monitoring

Integrated diagnostic tools in the 1756-EN2TR provide real-time insights into network status, link integrity, and device connectivity. Engineers can monitor packet transmission, latency, and error rates, enabling proactive troubleshooting and predictive maintenance strategies.

These diagnostic capabilities reduce system downtime, optimize network performance, and enhance overall reliability. Real-time monitoring also supports Industry 4.0 initiatives, providing visibility into operational efficiency and system health.

6. Integration with ControlLogix Systems

The 1756-EN2TR integrates seamlessly with Allen-Bradley ControlLogix PLCs, offering enhanced communication capabilities without additional configuration complexity. Engineers can configure the module using RSLogix 5000 / Studio 5000 software, which provides an intuitive interface for programming, network configuration, and system monitoring.

This integration allows for coordinated control of multiple controllers, I/O modules, and industrial devices, supporting complex automation applications while maintaining consistent performance and reliability.

7. Industrial Durability and Reliability

Built for harsh industrial environments, the 1756-EN2TR operates reliably under temperature fluctuations, vibration, and electrical noise. Its robust construction ensures long-term durability and consistent performance, minimizing the need for unplanned maintenance.

This reliability, combined with high-speed deterministic communication, makes the module ideal for critical applications such as assembly lines, process automation, and distributed control systems.

8. Applications

The 1756-EN2TR supports a wide range of industrial applications:

Process Industries: Chemical processing, water treatment, and energy management
Discrete Manufacturing: Automotive, electronics, and packaging lines
Material Handling: Conveyor control, sorting, and robotic integration
Utilities: Monitoring and controlling pump stations, fan systems, and energy distribution
Advanced Automation: Distributed control, predictive maintenance, and smart factory networks

Its versatility and high-speed performance make it a preferred choice for engineers seeking reliable and scalable Ethernet communication solutions.

9. Compliance and Safety

The 1756-EN2TR meets global industrial safety and compliance standards, including IEC, UL, and CE. Integration with certified industrial devices ensures safe operation while maintaining efficient and reliable communication across the network.

By adhering to these standards, engineers can design systems that not only perform efficiently but also meet regulatory and safety requirements.

10. Conclusion

The Allen-Bradley 1756-EN2TR Ethernet module provides high-speed, reliable, and scalable networking for modern industrial automation. Its dual ports, deterministic communication, advanced diagnostics, and seamless integration with ControlLogix PLCs make it an ideal solution for critical industrial processes.

For detailed specifications, network configuration tips, and integration guidance, engineers can consult www.ayingo.com, a trusted resource for Allen-Bradley automation components.
