708TX

In the fields of industrial automation, energy management, and intelligent transportation, the stability and reliability of networks are directly related to production efficiency and system security. As an unmanaged Ethernet switch designed specifically for industrial scenarios, the N-TRON 708TX is an ideal choice for industrial network infrastructure due to its robust and durable design, flexible deployment capabilities, and efficient data transmission performance.

1、 Product Overview

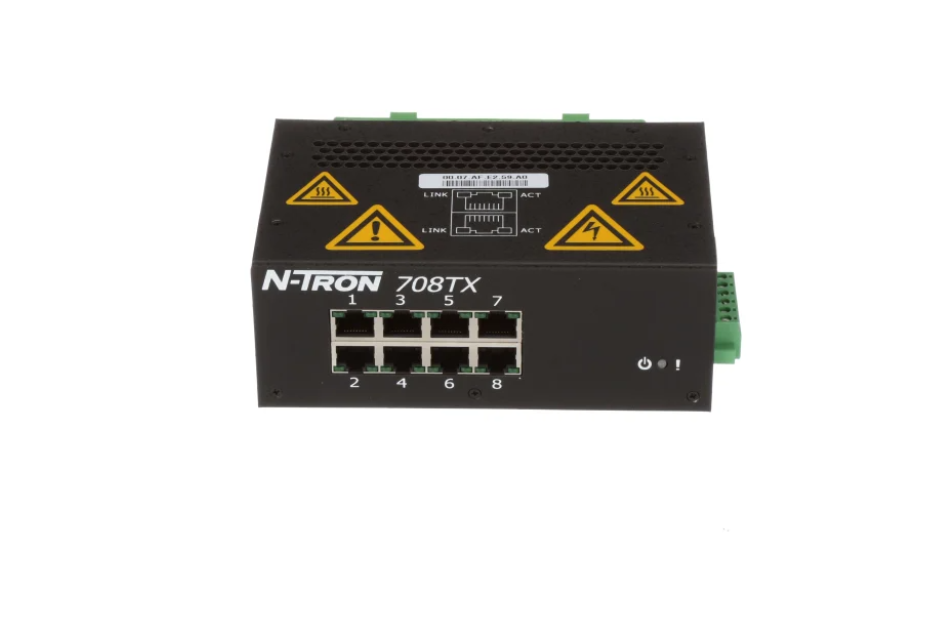

The N-TRON 708TX is an 8-port industrial grade Ethernet switch that supports 10/100Mbps adaptive transmission rates, developed specifically to meet the high standard requirements of industrial environments for network equipment. Its fanless design, wide temperature range (-40 ° C to 75 ° C), and IP30 protection rating enable it to operate stably in high temperature, high humidity, vibration, or electromagnetic interference scenarios such as factory workshops, railway systems, or outdoor energy stations.

2、 Core Features and Advantages
Industrial grade reliability
The 708TX adopts a metal casing and redundant dual power input (12-48VDC), supporting power polarity reversal protection to ensure that the equipment can continue to operate in the event of voltage fluctuations or unexpected power outages. Its MTBF (mean time between failures) exceeds 100000 hours, meeting the demand for long equipment life in industrial scenarios.

Plug and play, zero configuration deployment
As an unmanaged switch, 708TX can be put into use without complex settings, supporting automatic negotiation and traffic control (IEEE 802.3x), automatically optimizing port speed and duplex mode, significantly reducing the operational threshold.

Enhanced network performance

Support IEEE 802.1p QoS (Quality of Service) priority tagging to ensure low latency transmission of critical data such as PLC control signals or video surveillance streams.

The 4K MAC address table capacity can efficiently handle large-scale device access requirements.

Full line speed forwarding capability, all 8 ports support non blocking data exchange to avoid network congestion.

Flexible installation and expansion
Supports DIN rail installation or wall mounting, compact body design (134mm × 105mm × 35mm) saves cabinet space. Long distance transmission can be achieved through fiber optic modules (with optional SFP slot expansion) to meet the cross regional networking needs of factories.

3、 Typical application scenarios
Industrial automation: Connect PLC, HMI, sensors and other devices to build a real-time control network.

Intelligent transportation system: deployed along highways and railways, supporting data transmission from cameras, signal lights, and monitoring centers.

Energy infrastructure: equipment networking applied to substations and wind farms, capable of withstanding extreme temperature and humidity environments.

Building automation: Integrating security, HVAC and other subsystems to achieve intelligent management.

4、 Why choose 708TX?
Compared to commercial grade switches, the 708TX performs outstandingly in the following aspects:

Environmental adaptability: Through multiple certifications such as CE, FCC, UL, etc., it meets industrial EMC anti-interference standards.

Cost effectiveness: Provide equivalent reliability at a lower cost in scenarios that do not require complex network management.

Easy maintenance: Supports port status LED indication, and troubleshooting is intuitive and efficient.

5、 Summary
The N-TRON 708TX Ethernet switch provides a cost-effective solution for data transmission in harsh environments with industrial grade hardware design and simplified network management functions. Whether it is improving the stability of existing networks or building communication backbones for new projects, 708TX can become a trusted infrastructure component.
