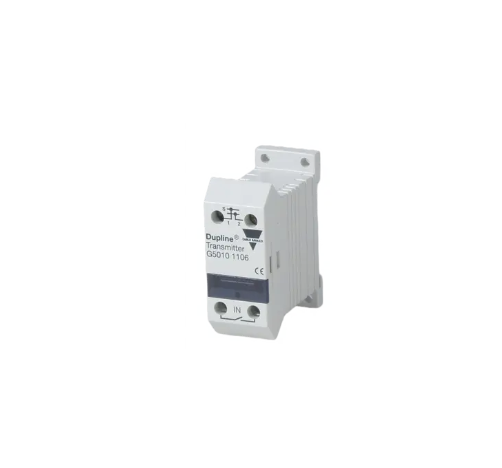

Carlo Gavazzi Dupline® G50101106

The Carlo Gavazzi Dupline G50101106 is a single-channel input module that allows reliable integration of digital signals into Dupline fieldbus networks. Compact and bus-powered, it features LED status indication and flexible mounting options, making it ideal for industrial automation and building management applications.

Categories: Fieldbus Module, Products Tags: Carlo Gavazzi Dupline, G50101106

Description
Reviews (0)

Carlo Gavazzi Dupline G50101106 Single-Channel Input Module — Professional Specifications and Features

The Carlo Gavazzi Dupline G50101106 is a compact, bus-powered single-channel contact input module designed for seamless integration into Dupline® fieldbus systems. Its robust design and straightforward functionality make it an ideal choice for industrial automation applications where space and power constraints are critical.

🔹 Overview

The G50101106 module serves as a contact input transmitter within the Dupline® network, enabling the integration of digital signals into automation systems. Its bus-powered design eliminates the need for an external power supply, simplifying installation and reducing system complexity.

🔹 Technical Specifications

Parameter	Description
Model	G50101106
Input Type	Contact input
Number of Channels	1
Power Supply	Supplied via Dupline® bus
Housing	Mini-E housing
Mounting	DIN rail or direct wall mounting
Protection Class	IP20
Operating Temperature	-20°C to +50°C
Storage Temperature	-50°C to +85°C
Dimensions (mm)	55.4 (H) × 22.5 (W) × 56 (D)
Weight	Approximately 50 g

🔹 Functional Features

Bus-Powered Operation: The module operates without the need for an external power supply, drawing power directly from the Dupline® bus.
Pulse Prolongation: A built-in pulse prolongation feature ensures that even short input pulses are transmitted reliably.
LED Status Indicator: Equipped with a red LED that can be coded to indicate the status of any Dupline® channel.
Compact Design: The Mini-E housing allows for space-saving installation in confined spaces.
Flexible Mounting Options: Can be mounted on a DIN rail or directly on a wall, offering versatility in installation.

🔹 Applications

The G50101106 module is suitable for various industrial applications, including:

PLC Systems: Integrating contact inputs into programmable logic controllers.
Automation Systems: Monitoring digital signals in automated processes.
Building Automation: Collecting data from switches and sensors in building management systems.

🔹 Installation and Configuration

Installation of the G50101106 module is straightforward:

Mounting: Attach the module to a DIN rail or directly to a wall.
Wiring: Connect the contact input to the designated terminals.
Programming: Use the GAP1605 programmer to assign addresses and configure the module as needed.

For detailed installation instructions and configuration guidelines, refer to the official datasheet.

🔹 Conclusion

The Carlo Gavazzi Dupline G50101106 Single-Channel Input Module offers a reliable and efficient solution for integrating digital contact inputs into Dupline® fieldbus systems. Its compact design, ease of installation, and bus-powered operation make it an excellent choice for various industrial automation applications.

For more information and to purchase the G50101106 module, visit the official Carlo Gavazzi website or authorized distributors.
