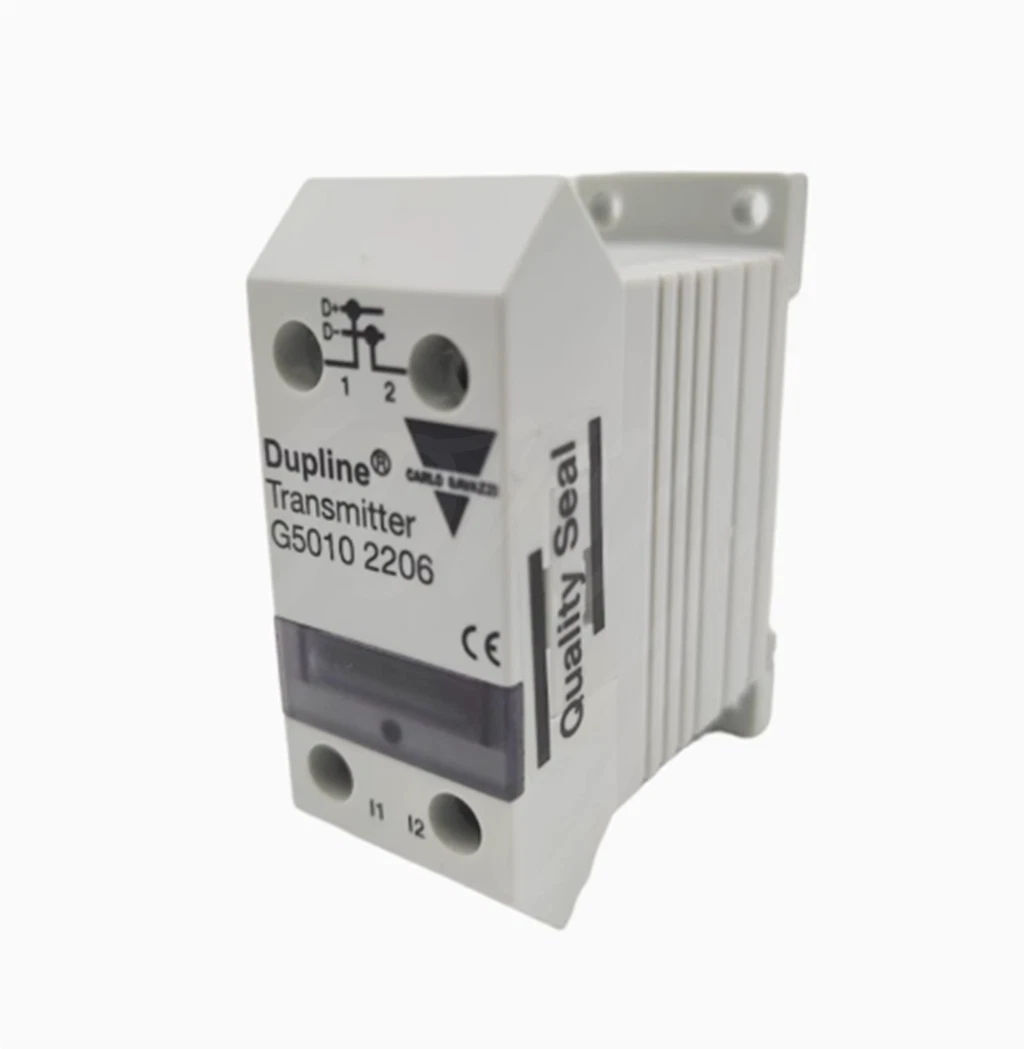

Carlo Gavazzi Dupline G50102206 Dual Channel Input Module — Professional Specifications and Features

The Carlo Gavazzi Dupline G50102206 is a versatile and reliable dual-channel input module designed for industrial automation systems. It serves as a contact input transmitter within the Dupline® fieldbus network, enabling seamless integration of digital signals into the system.

---

🔹 Overview

The G50102206 module is engineered to handle two independent contact inputs, making it ideal for applications requiring the monitoring of multiple digital signals. Its Dupline® bus-powered design eliminates the need for separate power supplies, simplifying installation and reducing system complexity.

---

🔹 Technical Specifications

• Model: G50102206

• Input Type: 2 contact inputs

• Power Supply: Powered via Dupline® bus

• Housing: Mini-E housing

• Mounting: DIN rail or direct wall mounting

• Protection Class: IP20

• Operating Temperature: 0°C to 50°C

• Dimensions: 55.4 mm (H) x 22.5 mm (W) x 56 mm (D)

• Weight: Approximately 50 g

---

🔹 Functional Features

• Dual Channel Input: Allows monitoring of two independent digital signals.

• Bus-Powered: Eliminates the need for an external power supply.

• Compact Design: Space-saving Mini-E housing suitable for confined spaces.

• Flexible Mounting Options: Can be mounted on DIN rail or directly on a wall.

• Status Indication: Equipped with a red LED to indicate the status of the inputs.

---

🔹 Applications

The G50102206 module is suitable for various industrial applications, including:

• PLC Systems: Integrating contact inputs into programmable logic controllers.

• Automation Systems: Monitoring digital signals in automated processes.

• Building Automation: Collecting data from switches and sensors in building management systems.

---

🔹 Installation and Configuration

Installation of the G50102206 module is straightforward:

1. Mounting: Attach the module to a DIN rail or directly to a wall.

2. Wiring: Connect the contact inputs to the designated terminals.

3. Programming: Use the GAP1605 programmer to assign addresses and configure the module as needed.

For detailed installation instructions and configuration guidelines, refer to the official datasheet.

---

🔹 Conclusion

The Carlo Gavazzi Dupline G50102206 Dual Channel Input Module offers a reliable and efficient solution for integrating digital contact inputs into Dupline® fieldbus systems. Its compact design, ease of installation, and bus-powered operation make it an excellent choice for various industrial automation applications.

For more information and to purchase the G50102206 module, visit the official Carlo Gavazzi website or authorized distributors.
