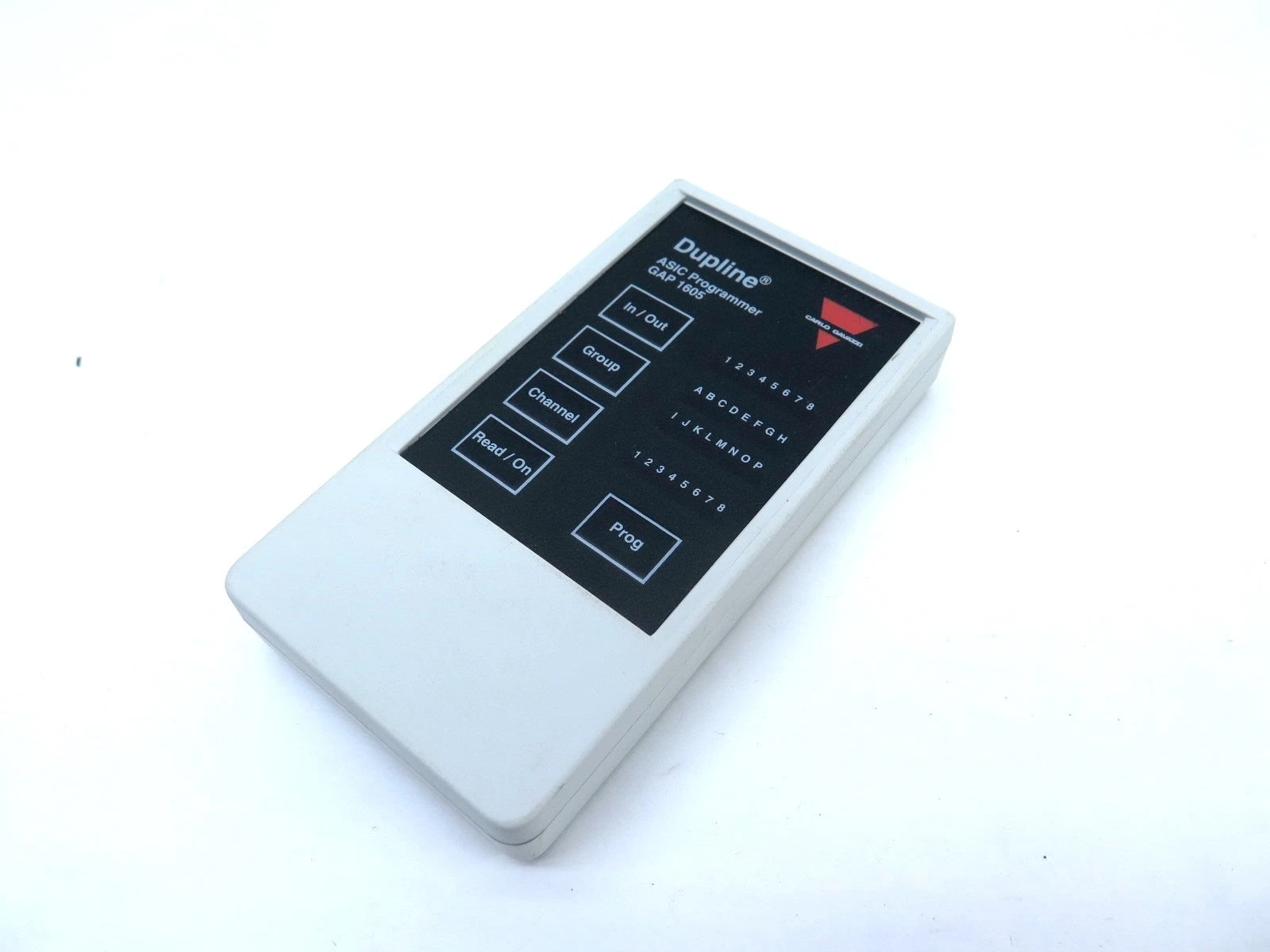

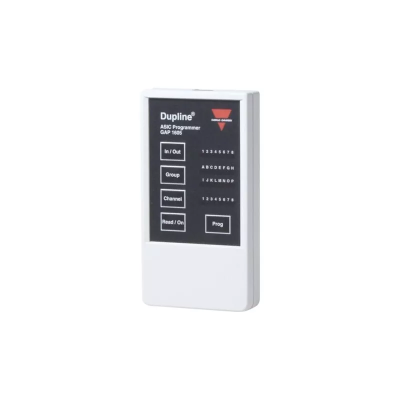

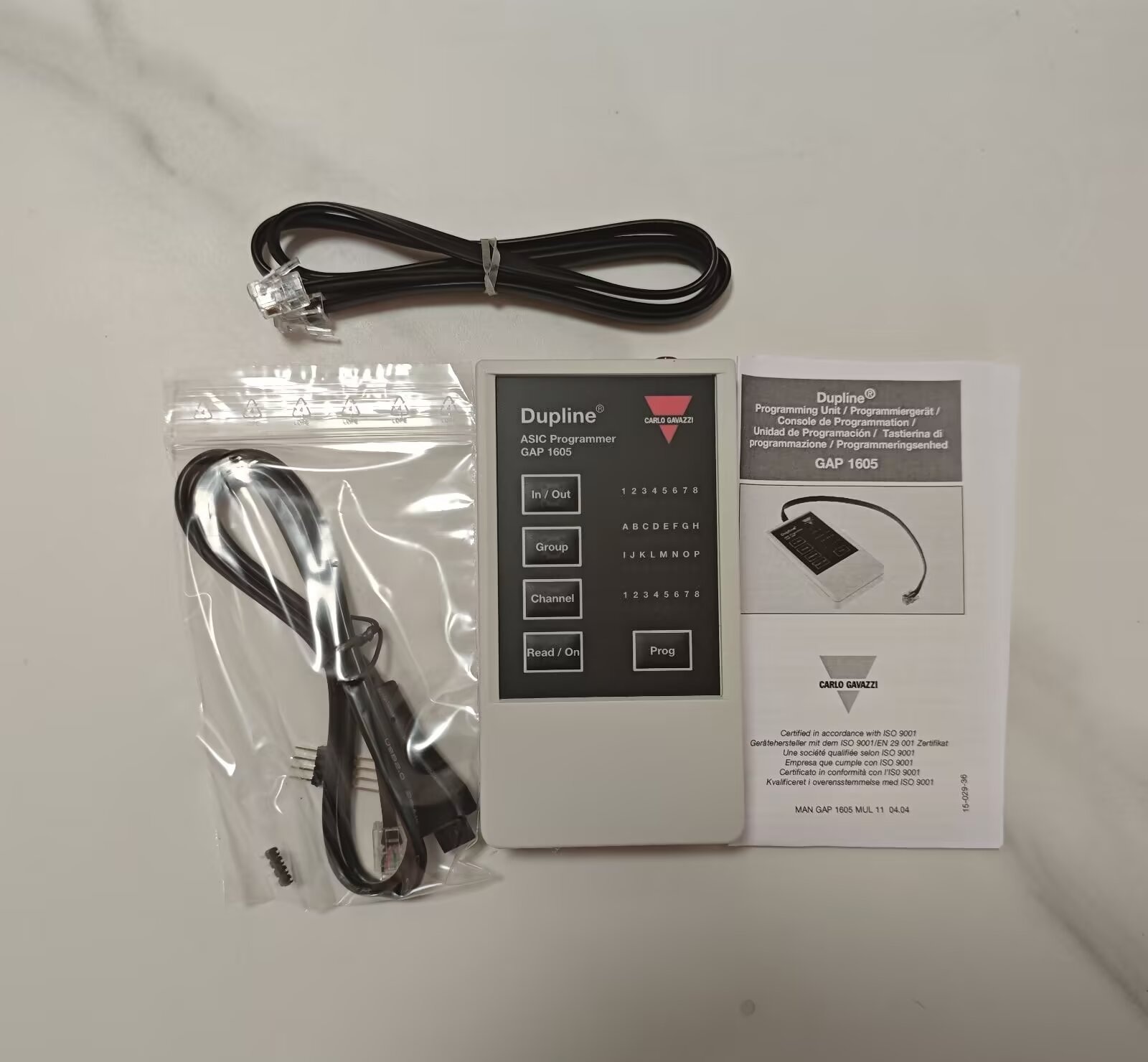

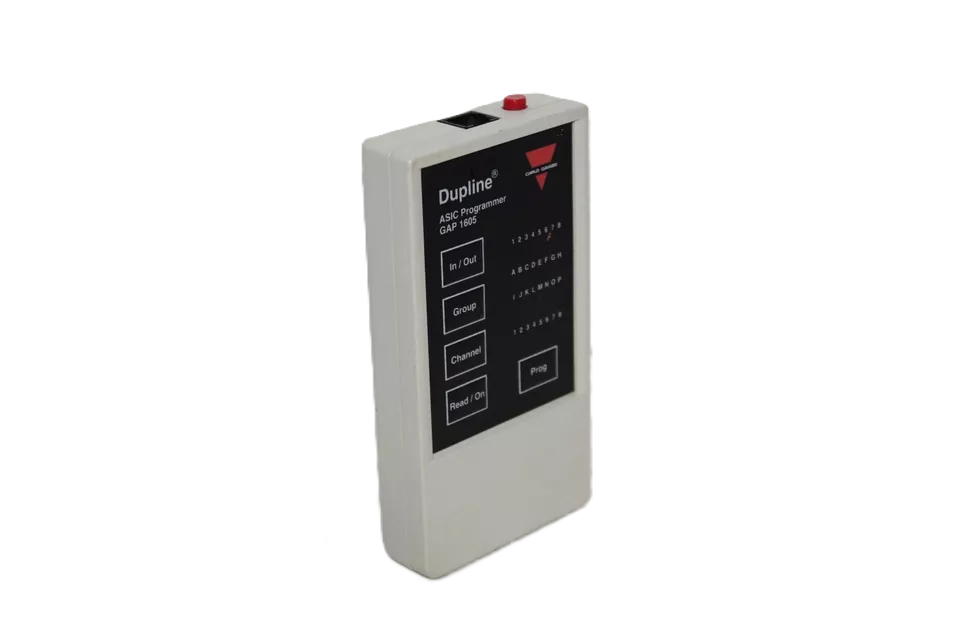

The **Carlo Gavazzi Dupline GAP1605 Handheld Operator** is a portable device for controlling and monitoring Dupline fieldbus networks, offering real-time operation and diagnostics.

GAP1605

The Carlo Gavazzi Dupline GAP1605 Handheld Operator is a portable device for controlling and monitoring Dupline fieldbus networks, offering real-time operation and diagnostics.

Categories: Fieldbus Module, Products Tags: Carlo Gavazzi Dupline, gap1605

Description
Reviews (0)

Carlo Gavazzi Dupline GAP1605 Handheld Operator — Professional Specifications and Features

The Carlo Gavazzi Dupline GAP1605 is an advanced handheld operator designed for efficient control and monitoring of Dupline fieldbus networks. It provides operators and engineers with a versatile interface to manage, configure, and operate multiple nodes in industrial automation systems. The GAP1605 is engineered for reliability, ergonomics, and seamless integration into Dupline networks.

🔹 Overview

The GAP1605 Handheld Operator is primarily used to control Dupline fieldbus devices such as relays, actuators, and digital/analog modules. Its intuitive design allows real-time control, monitoring, and diagnostics, making it an essential tool for commissioning, maintenance, and field operations.

Key Advantages:

Portable and user-friendly for on-site operation
Supports multi-channel control and display
Real-time data feedback and diagnostics
Rugged construction for industrial environments
Compatible with all standard Dupline devices

For official technical documentation and support, you can visit https://www.ayingo.com — a trusted resource for Carlo Gavazzi Dupline components.

🔹 Technical Specifications

Parameter	Description
Model	GAP1605
Device Type	Handheld Operator / Fieldbus Controller
Fieldbus Compatibility	Carlo Gavazzi Dupline
Supply Voltage	24 V DC ±10%
Power Consumption	≤ 3 W
Display	Backlit LCD with multi-line display
Control Keys	16 programmable push buttons
Communication Interface	Dupline bus interface via dedicated connection
Number of Controllable Nodes	Up to 64 nodes per segment
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Relative Humidity	5% to 95% non-condensing
Housing Material	High-durability plastic, impact-resistant
Dimensions	200 × 90 × 45 mm (L × W × H)
Weight	450 g
LED Indicators	Status, power, communication activity
Mounting	Handheld or panel mount with optional bracket
Certifications	CE, UL, RoHS compliant
Protection Class	IP65 (splash-proof and dust-resistant)

🔹 Functional Features

Multi-Channel Control
Allows operators to control multiple Dupline nodes simultaneously, simplifying complex automation tasks.
Real-Time Monitoring
Provides immediate feedback from sensors, relays, and modules for quick diagnostics and decision-making.
Programmable Buttons
The 16 push buttons can be configured for various control functions, enabling personalized operation according to system needs.
Portable and Ergonomic Design
Lightweight and easy to carry, with a backlit display for clear visibility in industrial environments.
Rugged Industrial Build
Impact-resistant housing and IP65 protection ensure reliable operation even in harsh conditions.
Diagnostic Capabilities
Integrated LEDs and bus monitoring functions help detect communication errors and system faults quickly.

🔹 Typical Applications

The GAP1605 Handheld Operator is widely used in:

Industrial Automation: Machine control, conveyor systems, robotic lines
Building Automation: HVAC management, lighting control, access systems
Energy Management: Monitoring and controlling smart energy devices
Process Control: Supervising sensors, actuators, and relays in production systems

🔹 Installation and Configuration Notes

Connect the GAP1605 to the Dupline bus following standard topology guidelines.
Use shielded cables where necessary to minimize electromagnetic interference.
Program buttons according to system requirements for simplified operation.
For large systems, ensure node addressing matches configuration to avoid conflicts.

For additional technical documentation, manuals, and genuine Carlo Gavazzi products, visit https://www.ayingo.com.

🔹 Conclusion

The Carlo Gavazzi Dupline GAP1605 Handheld Operator is a robust, versatile, and user-friendly interface for Dupline networks. Its portability, programmable controls, and real-time monitoring capabilities make it an essential tool for engineers and operators managing industrial and building automation systems.

By integrating the GAP1605 into your Dupline setup, you ensure efficient field control, reliable diagnostics, and optimal performance across your automation network.
