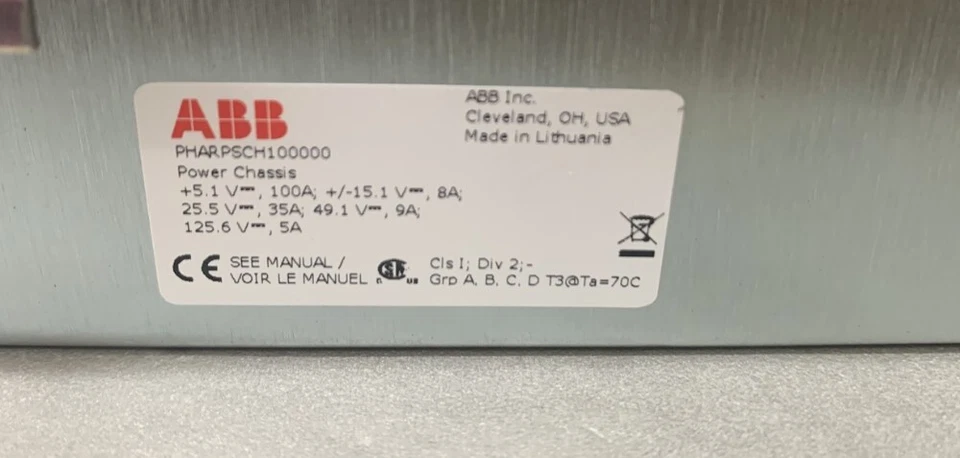

ABB Bailey PHARPSCH100000 Power Supply Chassis — Technical Specifications and Product Overview

The ABB Bailey PHARPSCH100000 Power Supply Chassis is a high-performance industrial power distribution frame designed to house and support ABB Bailey power modules such as the PHARPS32000000. Built with ABB’s advanced engineering and durable materials, this chassis provides a stable mechanical and electrical foundation for power modules within Bailey INFI 90 and Symphony DCS (Distributed Control System) architectures. It ensures efficient power delivery, superior heat dissipation, and simplified maintenance, making it an essential component in large-scale process control installations.

Product Overview

The PHARPSCH100000 chassis is designed to accommodate and interconnect one or more ABB Bailey power supply modules, distributing regulated DC power to multiple system components such as controllers, I/O modules, and communication interfaces. It provides reliable electrical connectivity, mechanical protection, and easy access for module insertion or removal.

Its rugged metal frame ensures secure installation in control cabinets and offers efficient thermal management to keep modules operating within optimal temperature ranges. The chassis integrates directly with ABB’s Bailey backplane and rack assemblies, maintaining compatibility with both legacy and modern system configurations.

Key Features

High Reliability:
Built for continuous industrial operation, ensuring consistent power delivery to all connected Bailey DCS modules.
Modular Configuration:
Supports installation of multiple power modules for redundancy or increased capacity.
Optimized Thermal Design:
Provides efficient heat dissipation for stable module operation and extended service life.
Ease of Maintenance:
Allows quick replacement or upgrade of power modules without interrupting system power.
Durable Construction:
Heavy-duty chassis made from corrosion-resistant metal with high structural integrity.
Full Compatibility:
Designed for ABB Bailey INFI 90, Symphony, and Net 90 control systems.

Technical Specifications

General Characteristics:

Model: PHARPSCH100000
Function: Power supply chassis for ABB Bailey PHARPS-series modules
System Compatibility: INFI 90, Symphony, Net 90 DCS systems
Mounting Type: Rack-mounted chassis, compatible with standard 19-inch industrial racks
Construction: Aluminum alloy with electrostatic powder-coated finish
Cooling Method: Natural convection and system ventilation

Electrical Specifications:

Input Power Bus: 85–264 VAC, 47–63 Hz (through installed power module)
DC Output Distribution: 24 VDC regulated, distributed through internal bus connectors
Power Handling Capacity: Supports up to two PHARPS32000000 modules in parallel (redundant mode)
Bus Connection: Heavy-duty copper backplane connectors ensuring low-resistance and stable current flow
Power Indicator: LED indicators for module power status and system readiness

Mechanical Specifications:

Dimensions (H × W × D): 150 × 482 × 260 mm (standard rack mount width)
Weight: Approximately 5.5 kg (without modules)
Material: Aluminum and steel composite for strength and lightness
Module Slots: 2 or more (depending on configuration), hot-swappable design
Mounting Orientation: Horizontal or vertical depending on cabinet layout

Environmental Conditions:

Operating Temperature: −10°C to +60°C
Storage Temperature: −25°C to +85°C
Humidity: 5–95% RH, non-condensing
Cooling Requirements: Requires unobstructed airflow for optimal performance
Vibration Resistance: 10–55 Hz, 1.5 mm amplitude
Shock Resistance: 15 g for 11 ms duration
Ingress Protection: IP20 (when installed within control cabinet)

Safety and Standards Compliance:

Certifications: CE, UL, and CSA compliant
Insulation Resistance: ≥ 100 MΩ at 500 VDC
Dielectric Strength: 1500 VAC between power and ground
Grounding: Dedicated grounding terminals for system protection

Functional Description

The ABB Bailey PHARPSCH100000 acts as the primary frame for system power distribution. When populated with PHARPS-series modules, it converts and channels electrical power to the entire control network through its internal bus. The chassis ensures that all connected modules receive stable, filtered, and isolated power while maintaining proper grounding and shielding for noise immunity.

Its modular structure allows users to install multiple power modules for redundant or load-sharing configurations, enhancing system reliability. If one module fails, the second automatically continues supplying power, ensuring uninterrupted operation.

The built-in power backplane connects to the control system via high-reliability connectors, providing clean electrical contact and minimizing voltage drop. LEDs on the front panel give clear visual feedback of power module status, simplifying system diagnostics.

Applications

The PHARPSCH100000 chassis is an integral component of ABB Bailey automation systems used in various industries, including:

Oil and Gas Plants: Ensures reliable power for process control units and safety systems.
Power Generation: Provides continuous power to turbine control and monitoring modules.
Chemical and Petrochemical Plants: Supports stable operation of distributed controllers and I/O devices.
Pulp and Paper Mills: Powers control and monitoring modules for precision manufacturing processes.
Water Treatment Facilities: Supplies redundant power for monitoring pumps, valves, and actuators.

By providing a robust and reliable foundation for the power modules, the chassis enhances the overall system availability and reduces unplanned downtime.

Performance and Reliability

The PHARPSCH100000 is engineered with ABB’s advanced design principles for long-term dependability. Its power distribution architecture ensures minimal voltage drop across all connected modules. The use of high-quality bus connectors and thick copper traces allows stable power flow under varying loads.

The chassis also features passive cooling and vibration-resistant mounting points, which contribute to maintaining consistent electrical performance in harsh industrial environments. All materials used in the construction are flame-retardant and comply with global industrial safety standards.

Advantages of the PHARPSCH100000 Power Chassis

Simplifies system wiring and integration
Provides redundant power supply capability
Ensures safe, efficient, and reliable power distribution
Designed for fast module replacement and minimal downtime
Built to ABB’s strict industrial quality standards
Compatible with both legacy and new ABB Bailey systems

Summary

The ABB Bailey PHARPSCH100000 Power Supply Chassis is a robust, modular, and reliable platform engineered to support ABB Bailey PHARPS-series power modules. It offers stable electrical performance, mechanical durability, and long-term reliability, making it a vital component in distributed control systems for demanding industrial environments.

Technical Highlights:

Model: PHARPSCH100000
Function: Power supply chassis for ABB Bailey PHARPS modules
Input: 85–264 VAC (via installed module)
Output: 24 VDC distribution
Capacity: Up to two modules in redundancy
Operating Temperature: −10°C to +60°C
Compatibility: Bailey INFI 90, Symphony, Net 90 DCS

The PHARPSCH100000 exemplifies ABB’s commitment to industrial excellence, offering dependable power distribution and superior system integration for modern automation infrastructures.
