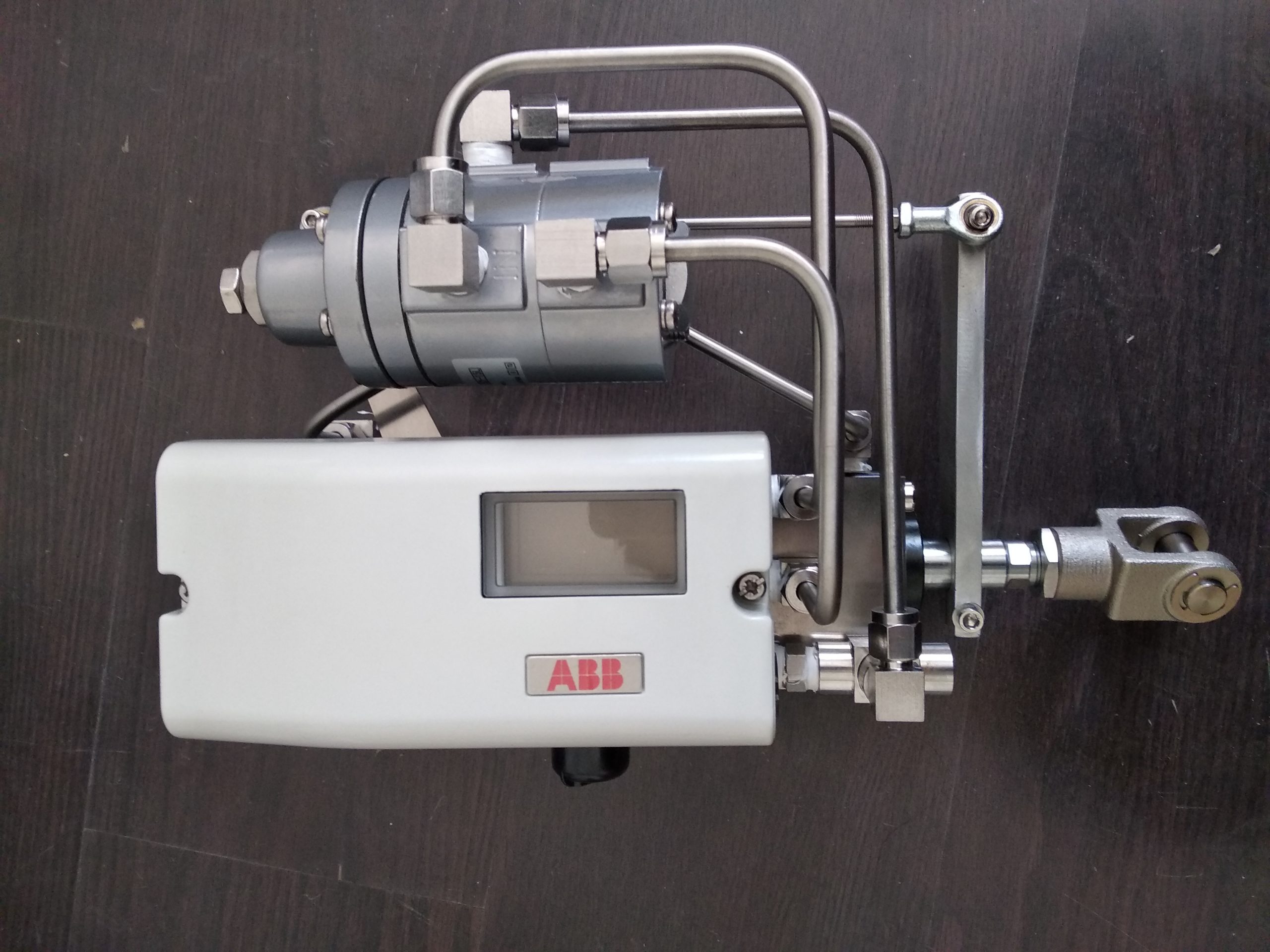

ABB Positioner + Pneumatic Actuator System V18345-2020521001 + LP10BB10010: Precision Control for Industrial Automation

In the ever-evolving world of industrial automation, achieving high levels of precision and reliability is crucial for optimizing operations, improving system performance, and reducing operational costs. The combination of the ABB Positioner V18345-2020521001 and the Pneumatic Actuator LP10BB10010 creates an integrated solution that ensures optimal control and performance in various industrial applications. Together, these components deliver exceptional efficiency, speed, and accuracy for processes that demand precise actuation and seamless control.

This article will explore the features, benefits, applications, and specifications of the ABB Positioner V18345-2020521001 and Pneumatic Actuator LP10BB10010 system. We will also highlight how this integrated solution can enhance control, improve system stability, and reduce maintenance requirements in industries like oil and gas, chemical processing, power generation, and water treatment.

1. Introduction to the ABB Positioner and Pneumatic Actuator System

The ABB Positioner V18345-2020521001 combined with the Pneumatic Actuator LP10BB10010 creates a dynamic control system that ensures precise control of valves, dampers, and other industrial devices. This integrated solution is designed to meet the needs of industries requiring real-time response, accuracy, and durability.

The ABB Positioner V18345-2020521001 acts as a critical component in the actuation system, converting the control signal from a distributed control system (DCS) or programmable logic controller (PLC) into precise mechanical movement. It does so by adjusting the position of the valve or actuator with high accuracy, ensuring optimal flow control and system stability.

On the other hand, the LP10BB10010 Pneumatic Actuator provides the force needed to drive the mechanical movements, using compressed air to actuate valves and dampers efficiently. Together, these components create a robust and reliable system capable of handling a wide range of industrial applications, from high-pressure systems to chemical processes that demand precision and responsiveness.

2. Key Features of the ABB Positioner V18345-2020521001 + Pneumatic Actuator LP10BB10010

Precision and Control

The ABB Positioner V18345-2020521001 ensures that the pneumatic actuator’s response is precisely tuned to the control signal, enabling high-accuracy positioning. This allows operators to adjust valves and dampers accurately, ensuring that systems are regulated to maintain optimal flow rates, pressure, and temperature.

The LP10BB10010 actuator complements this precision by providing a consistent and reliable mechanical force to move the valves or dampers. Its high-speed operation ensures that the actuator can respond to changes in the control system in real-time, preventing delays in the system’s response and maintaining stability.

Energy Efficiency

Both the ABB Positioner and the LP10BB10010 Pneumatic Actuator are designed with energy efficiency in mind. The positioner’s control algorithms ensure minimal energy use while maintaining optimal performance. Similarly, the pneumatic actuator uses compressed air to operate, which is generally more energy-efficient than other forms of actuation, especially in applications where constant actuation is required. This combination allows industries to reduce operational energy consumption, making the system a more sustainable option.

Durability and Reliability

Industries that require continuous operation need components that can withstand the rigors of harsh environments. The ABB Positioner V18345-2020521001 is built for reliability, providing consistent performance across a wide range of temperatures and environmental conditions. The LP10BB10010 Pneumatic Actuator is similarly designed with corrosion-resistant materials and a rugged construction to ensure durability in challenging industrial settings, including offshore rigs, chemical plants, and water treatment facilities.

Fast Response Time

The LP10BB10010 Pneumatic Actuator offers quick response times, enabling rapid adjustments to be made in real-time. This is particularly important in applications where pressure, temperature, or flow needs to be controlled instantly. Whether it’s regulating the flow of chemicals in a reactor or adjusting pressure in a pipeline, the fast response of the actuator helps to maintain system stability and prevent costly process fluctuations.

Seamless Integration

The integration of the ABB Positioner V18345-2020521001 and LP10BB10010 Pneumatic Actuator ensures smooth communication between components. The positioner’s communication with the DCS or PLC provides the control signals that drive the actuator, which then performs the physical movement of valves or dampers. This seamless integration ensures that the system operates efficiently, with minimal manual intervention required.

3. Technical Specifications of the ABB Positioner + Pneumatic Actuator System

Parameter	Specification
Model Number	ABB Positioner V18345-2020521001 + LP10BB10010
Actuator Type	Double-acting Pneumatic Actuator
Control Signal	4-20 mA (Standard)
Operating Pressure Range	2 to 8 bar (29 to 116 psi)
Torque Output	30 to 80 Nm
Air Consumption	0.08 to 0.20 Nm³/min at 6 bar
Temperature Range	-20°C to +80°C
Mounting Type	Flange-mounted, standard bolt patterns
Body Material	Corrosion-resistant anodized aluminum alloy
Seals	High-quality elastomer seals
Protection	IP65 (dustproof and water-resistant)
Weight (Positioner)	3.5 kg
Weight (Actuator)	5.5 kg
Certifications	CE, ATEX, UL

4. Applications of the ABB Positioner + Pneumatic Actuator System

The ABB Positioner V18345-2020521001 and LP10BB10010 Pneumatic Actuator combination is highly versatile and used in various industrial applications that require precise valve control and actuation. Some key applications include:

Oil and Gas Industry

In the oil and gas industry, valves must often handle high pressures, corrosive materials, and volatile substances. The ABB Positioner ensures that the LP10BB10010 Pneumatic Actuator delivers precise movements, enabling accurate control of valves that regulate the flow of oil, gas, and other fluids. The high-force output of the actuator allows it to handle heavy-duty applications, while the positioner ensures exact positioning for maximum control and safety.

Chemical Processing

The LP10BB10010 Pneumatic Actuator and ABB Positioner V18345-2020521001 system are used extensively in chemical plants to regulate the flow of chemicals in reactors, storage tanks, and piping systems. The precise control offered by this integrated system helps ensure that reactions occur within optimal conditions, reducing waste, minimizing safety hazards, and improving overall process efficiency.

Power Generation

In power plants, maintaining consistent flow and pressure in systems such as boilers, turbines, and steam valves is critical. The ABB Positioner paired with the LP10BB10010 Pneumatic Actuator ensures that power plant systems operate efficiently by providing accurate control over valve movements. The system helps prevent overpressure situations, improves energy efficiency, and reduces operational costs.

Water Treatment

The LP10BB10010 Pneumatic Actuator and ABB Positioner system play a key role in controlling the flow of water, chemicals, and waste products in water treatment plants. By precisely controlling the position of valves and dampers, this integrated solution helps maintain the proper flow rates, pressures, and chemical concentrations required for effective water purification and treatment.

5. Benefits of the ABB Positioner + Pneumatic Actuator System

Enhanced Control and Accuracy

The ABB Positioner V18345-2020521001 ensures precise control over the pneumatic actuator, enabling accurate valve positioning. This enhanced control improves system efficiency, reduces the likelihood of errors, and optimizes the regulation of critical parameters such as temperature, pressure, and flow.

Energy Efficiency

Both the ABB Positioner and LP10BB10010 Pneumatic Actuator are designed for energy-efficient operation. The low energy consumption of the system helps reduce operational costs while maintaining reliable performance. Energy savings are crucial for industries aiming to reduce their carbon footprint and minimize energy expenses.

Durability and Reliability

Built to last, the LP10BB10010 Pneumatic Actuator and ABB Positioner V18345-2020521001 offer long-term durability in harsh industrial environments. Whether exposed to chemicals, extreme temperatures, or physical wear, these components are engineered to withstand the most demanding conditions, ensuring continuous operation and minimizing the need for frequent replacements.

Easy Integration and Maintenance

The seamless integration of the ABB Positioner with the LP10BB10010 Pneumatic Actuator simplifies installation, reducing setup time. The system’s modular design allows for easy maintenance and replacement of individual components, minimizing downtime and reducing the cost of repairs.

6. Conclusion

The ABB Positioner V18345-2020521001 and LP10BB10010 Pneumatic Actuator system provides an integrated solution that delivers precision control, high-speed operation, and energy-efficient performance for a variety of industrial applications. From oil and gas to water treatment, this system offers exceptional reliability, accuracy, and flexibility. Its seamless integration, corrosion-resistant design, and easy maintenance features make it an excellent choice for industries looking to optimize performance and reduce costs.

By combining the precise control of the ABB Positioner with the robust performance of the LP10BB10010 Pneumatic Actuator, companies can achieve enhanced process stability, improved safety, and lower operational costs. This integrated solution is ideal for industries seeking to maintain high standards of performance while reducing the environmental and economic impact of their operations.
